TP85; Decca, London (ID = 1843999) Radio
Decca, London: TP85 [Radio] ID = 1843999 933x720
Select picture or schematic to display from thumbnails on the right and click for download.
For model TP85, Decca, London:

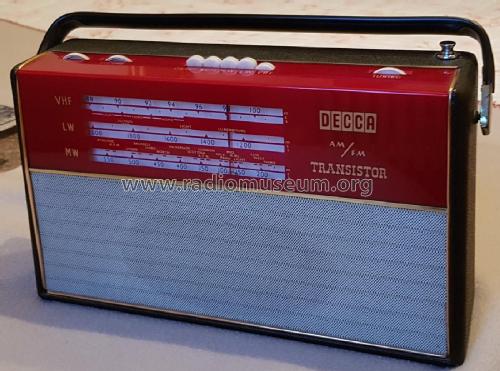

A Decca TP85 AM/FM portable transistor radio in black and maroon. Picture courtesy of Mr Ron Bryan.

Country:  Great Britain (UK)
Manufacturer / Brand:  Decca, London
alternative name

Decca Gramophone || Decca Radio
Year: 1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF116 OC71 OC81D OC81 OC81
Main principle Super-Heterodyne (Super in general); ZF/IF 472/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 1 × 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: TP85 - Decca, London
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 330 x 200 x 100 mm / 13 x 7.9 x 3.9 inch
Notes

Elliptical loudspeaker 7 x 3.5 inch. Mute button. Sockets for external FM & AM aerials,  ext.speaker/earphone, tape recorder plus input for record player. Released July 1963 price £21 14s 4d plus purchase tax.
The radio has the space and a second connector so that two PP9 type batteries can be connected together in parallel.

Price in first year of sale 25.00 GBP
Source of data -- Collector info (Sammler)
Mentioned in Radio And Television Servicing books (R&TVS)

Model page created by John Koster. See "Data change" for further contributors.
