Audion Control Panel Type P-401
DeForest Radio Telephone & Telegraph Co. (De Forest); New York
- Country
- United States of America (USA)
- Manufacturer / Brand
- DeForest Radio Telephone & Telegraph Co. (De Forest); New York
- Year
- 1919
- Category
- Radio module pre 1926 (not a part, not a key)
- Radiomuseum.org ID
- 313687
-
- alternative name: Lee De Forest Mfg.
- Number of Tubes
- 1
- Valves / Tubes
- Main principle
- Detector with Vacuum Tube (Valve), no tuner
- Wave bands
- - without
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - - No sound reproduction output.
- Material
- Wooden case, TUBES VISIBLE.
- from Radiomuseum.org
- Model: Audion Control Panel Type P-401 - DeForest Radio Telephone &
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
-

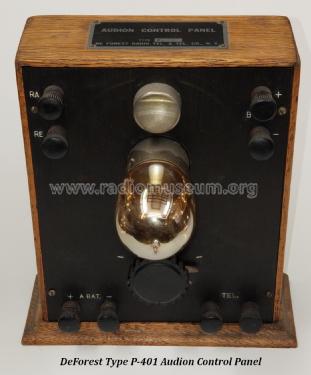

The P-401 Audion Panel includes a tube socket, grid leak and condenser, and filament rheostat. Connection to batteries and other circuit elements via binding posts. Panel is mounted in an oak cabinet.
- Price in first year of sale
- 11.75 $
- Mentioned in
- -- Original prospect or advert (August 1919, Popular Science magazine page 118)
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
