D748

D748 ; De Forest DeForest (ID = 2093443) Radio D748 ; De Forest DeForest (ID = 2093444) Radio

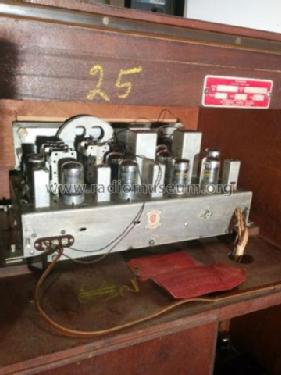

D748 ; De Forest DeForest (ID = 2093445) Radio D748 ; De Forest DeForest (ID = 2093447) Radio
D748 ; De Forest DeForest (ID = 2093448) Radio D748 ; De Forest DeForest (ID = 2093449) Radio
D748 ; De Forest DeForest (ID = 2093446) Radio
Use red slider bar for more.
D748 ; De Forest DeForest (ID = 2093443) Radio
De Forest DeForest: D748 [Radio] ID = 2093443 360x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model D748, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto:
from kijiji ad

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1948 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 17: 6BA6 6BE6 7W7 7W7 6E5 7C7 7C7 7A6 6C4 7Q7 7E7 7B6 7B6 7B6 6V6GT 6V6GT 5U4GT
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: D748 - De Forest DeForest Crosley
Material Wooden case
Shape Console with any shape - in general
Notes

The Canadian Deforest Crosley model D748 shares the same schematic as the Rogers Majestic model R348.

Literature/Schematics (1) Radio College of Canada (RCC) (1948/49 Rogers Majestic Sheet 140)

Model page created by Steve Valeriote. See "Data change" for further contributors.
