Mounted Triple Coil Mounting LC-201 (Denver) Oak Base with Primary Condenser Switch

DeForest Radio Telephone & Telegraph Co. (De Forest); New York

  • Year
  • 1920
  • Category
  • Radio part (not a module)
  • Radiomuseum.org ID
  • 193986
    • alternative name: Lee De Forest Mfg.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Mounted Triple Coil Mounting LC-201 [Oak Base with Primary Condenser Switch] - DeForest Radio Telephone &
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

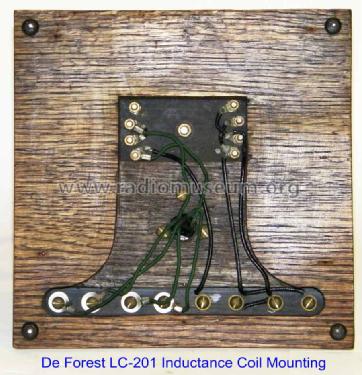

  • The De Forest LC-201 triple coil mounting assembly and Primary condenser Switch mounted on an oak base for tabletop use. The coil mounting holds two primaries and a secondary for use on balance circuits. De Forest coils were manufactured by Coto-Coil (Providence, RI). Chief Engineer Gowen designed the Unit Receiver and the plug-in coils, but end of 1918 De Forest reclined that. In 1919 the business went down, and De Forest authorized Gowen to proceed with the developments. By order of De Forest Gowen contacted Thomas Giblin, President of Coto-Coil. Coto-Coil as well as Giblin both manufactured later coils under their own name. Giblin also built radios.
  • Price in first year of sale
  • 14.00 $
  • Literature/Schematics (1)
  • De Forest Catalog "D" page 4
  • Author
  • Model page created by Alan Larsen. See "Data change" for further contributors.
