- Country
- Great Britain (UK)
- Manufacturer / Brand
- Denco, Clacton-on-Sea
- Year
- 1949 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 127098
Restored radio.
The unrestored radio.
Coil adjustment side of the chassis.
Coil assembly under the chassis.
Rear view of the restored radio.
Rebuilt power supply and volume control.
Station selector plate.

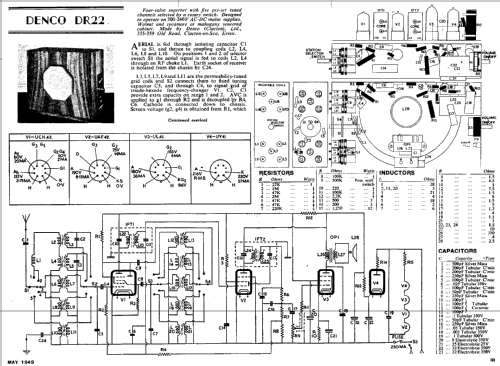

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: DR22 - Denco, Clacton-on-Sea
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
- 5 Preset channels using permeability tuning. Selected by a rotary switch. Each preset covers a different frequency range. Case either walnut & sycamore or mahogany veneered.
- Source of data
- -- Schematic
- Literature/Schematics (1)
- Paul Stennings Vintage Radio Service Data Vol 2
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
