- Country
- France
- Manufacturer / Brand
- Desmet, SGER (S.G.E.R.); Lille, Faches-Thumesnil
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62606
Dépliant Gamme 1936
Dépliant Gamme 1936

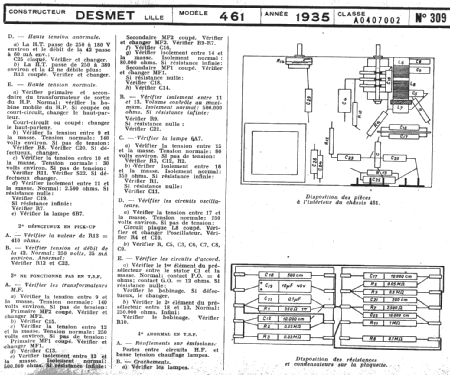

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 122,5 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 461 - Desmet, SGER S.G.E.R.; Lille,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Price in first year of sale
- 1,095.00 FRF
- External source of data
- Serge Laffont/Martin Renoth
- Literature/Schematics (1)
- Schémathèque Toute la Radio (STR) (No. 309)
- Literature/Schematics (2)
- -- Original prospect or advert (Dépliant Gamme 1936)
