• Country
• Switzerland

• Manufacturer / Brand
• Deso, Dewald & Sohn, Dewald AG; Zürich

• Year
• 1952

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 200762

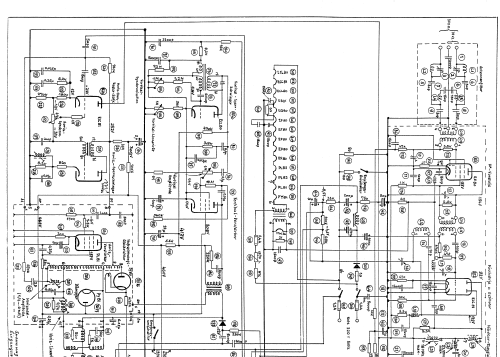

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• from Radiomuseum.org
• Model: Aldepa A-200 - Deso, Dewald & Sohn, Dewald AG

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 580 x 520 x 460 mm / 22.8 x 20.5 x 18.1 inch

• Notes
• Ausführung nach der CCIR 625-Zeilennorm;
  Empfangskanal 61...68 MHz. Für andere Kanäle: Auswechslung von Steckspulen
  Bildröhre 27 x 36 cm
  Gewicht: ca. 31 kg

• Net weight (2.2 lb = 1 kg)
• 31 kg / 68 lb 4.5 oz (68.282 lb)

• Author
• Model page created by Walter Haring. See "Data change" for further contributors.
