Philadelphia-Sc 328 Schr.

Deso, Dewald & Sohn, Dewald AG; Zürich

  • Year
  • 1937/1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 11831

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 470 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Presumably Dynamic Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Philadelphia-Sc 328 Schr. - Deso, Dewald & Sohn, Dewald AG
  • Shape
  • Console with any shape - in general
  • Price in first year of sale
  • 780.00 SFr
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb

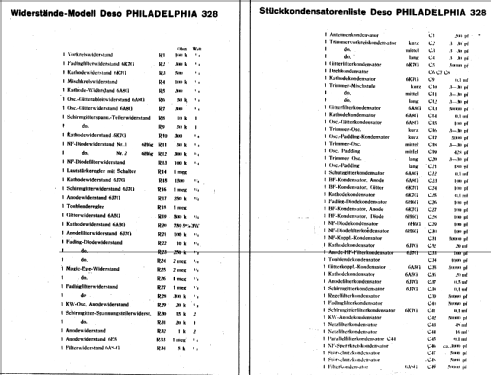

  • Circuit diagram reference
  • Thali-Schemasammlung und Tungsram-Röhrenbestückung.
