- Country
- United States of America (USA)
- Manufacturer / Brand
- Detrola; Detroit (MI)
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 159555

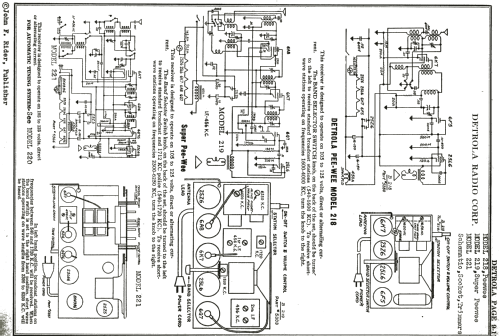

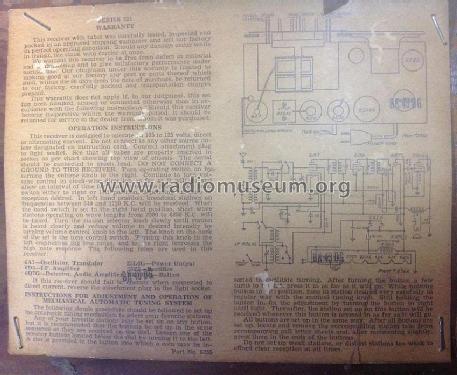

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 221 - Detrola; Detroit MI
- Shape

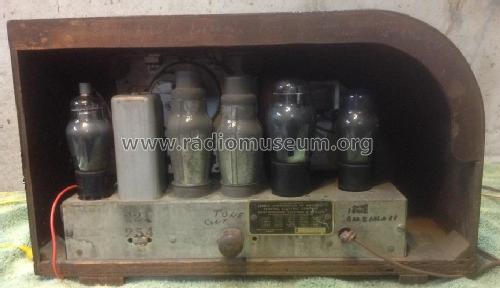

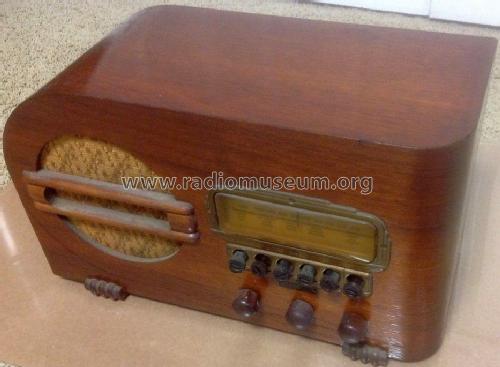

- Tablemodel with Push Buttons.
- Notes
- BC (540-1720 kHz) and SW (2300-6250 kHZ) bands. BK49BG is a ballast tube.
- Mentioned in
- Rider's Perpetual, Volume 9 = 1938 and before (Rider's 9, Detrola section, page 11)
- Author
- Model page created by Robin Roeckers. See "Data change" for further contributors.
