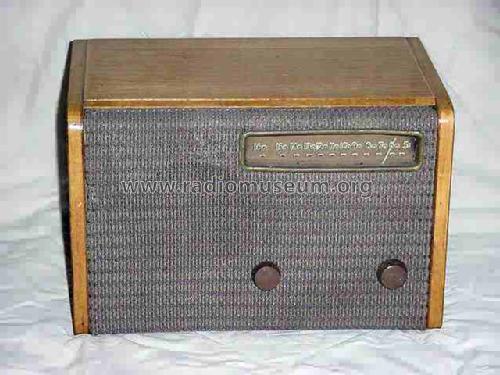

571A ; Detrola; Detroit MI (ID = 93778) Radio 571A ; Detrola; Detroit MI (ID = 93779) Radio
571A ; Detrola; Detroit MI (ID = 719426) Radio 571A ; Detrola; Detroit MI (ID = 1242141) Radio
571A ; Detrola; Detroit MI (ID = 1242142) Radio 571A ; Detrola; Detroit MI (ID = 1242143) Radio
571A ; Detrola; Detroit MI (ID = 1242144) Radio 571A ; Detrola; Detroit MI (ID = 2267021) Radio
571A ; Detrola; Detroit MI (ID = 2267022) Radio 571A ; Detrola; Detroit MI (ID = 2267023) Radio
Use red slider bar for more.
571A ; Detrola; Detroit MI (ID = 93778) Radio
Detrola; Detroit MI: 571A [Radio] ID = 93778 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 571A, Detrola; Detroit (MI)

Country:  United States of America (USA)
Manufacturer / Brand:  Detrola; Detroit (MI)
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7GT 12SK7GT 12SQ7GT 50L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: 571A - Detrola; Detroit MI
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 12.2 x 7.7 x 7.3 inch / 310 x 196 x 185 mm
Notes The 571 had over 52 brand names and at least 10 cabinet styles, both wooden and plastic for this one model.
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in Machine Age to Jet Age II
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 10, Folder 4610-16)


All listed radios etc. from Detrola; Detroit (MI)
Here you find 320 models, 177 with images and 281 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
