• Year
  • 1922
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 229222

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • Horn
  • Material
  • Various materials
  • from Radiomuseum.org

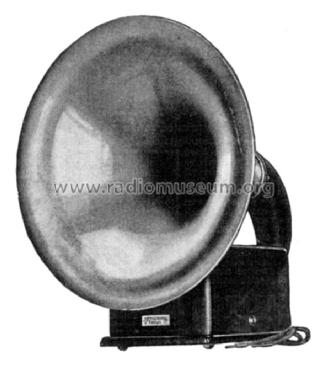

  • Model: Dictograph Radio Loud Speaker - Dictograph Products Co.
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 6 x 5 x 4 inch / 152 x 127 x 102 mm
  • Notes
  • Highly burnished, French laquered, eleven-inch spun copper bell, die-cast black enamel tone arm, finished with nickel trimmings. Cabinet ebony-finished hardwood, on rubber stands.

    Complete with 5 ft. flexible cord.

    Dimensions given for cabinet only.

    According to "Radio Horn Speaker Encyclopedia", the "portable" model was available in 3 different variants (laquer, gold, black). However, currently no contemporary advertisements are known that name the Dictograph Radio Loud Speaker a portable model.

  • Price in first year of sale
  • 20.00 USD
  • Mentioned in
  • Popular Science, Nov. 1922
  • Literature/Schematics (1)
  • Radio Horn Speaker Encyclopedia, by Floyd A.Paul
