• Year
  • 1967–1970
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 188902

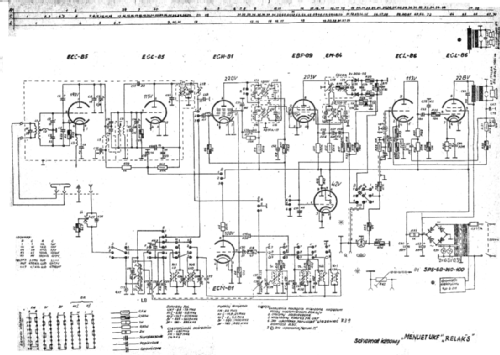

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Number of Transistors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 18 cm = 7.1 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Menuet UKF 20303 - Unitra DIORA - Radiowerk
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 580 x 390 x 290 mm / 22.8 x 15.4 x 11.4 inch
  • Author
  • Model page created by Bernhard Piszczan. See "Data change" for further contributors.
