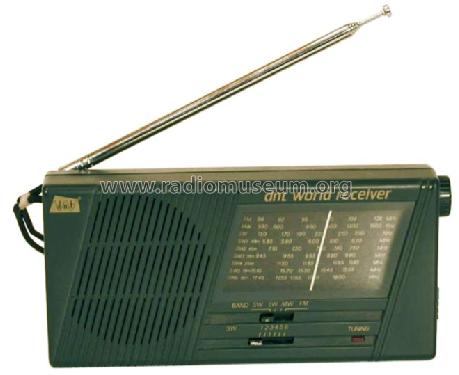

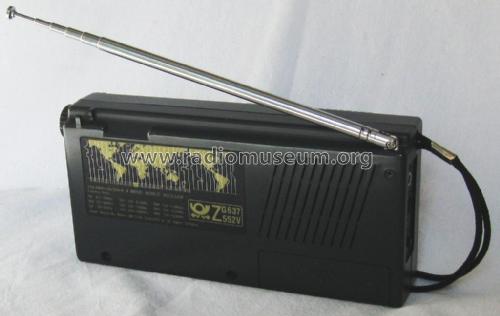

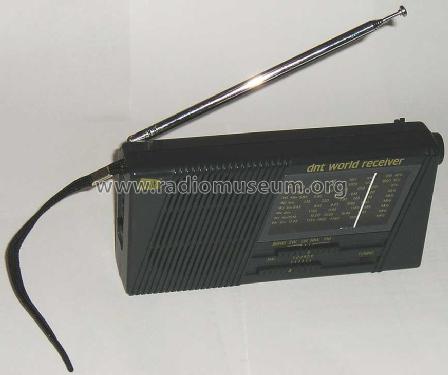

DNT Drahtlose: World Receiver [Radio] ID = 2130013 1024x742

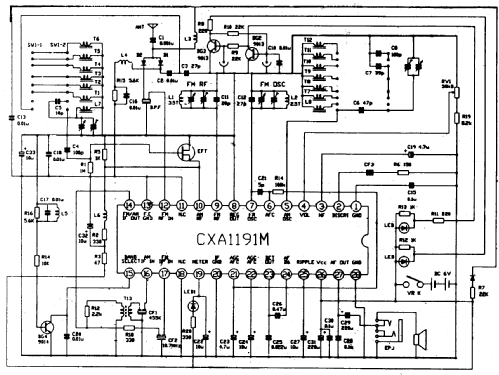

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1988/1989 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 4: CS9013 CS9013 CS9014 unknown_tr_FET CXA1191 Diode_LED |
|---|
| Main principle | Superheterodyne (common); ZF/IF 455/10700 kHz |
|---|---|
| Wave bands | Broadcast, Long Wave, more than 2 x SW plus FM or UHF. |
| Details | |
| Power type and voltage | Dry Batteries / 2 × 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.35 cm = 2.5 inch |
| Power out | 0.3 W (unknown quality) |
| from Radiomuseum.org | Model: World Receiver - DNT Drahtlose |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 160 x 78 x 35 mm / 6.3 x 3.1 x 1.4 inch |
| Notes | DNT World Receiver; 6 KW-Bänder: 49, 41, 31, 25, 19 & 16m; Stab- und Ferritantenne; Ohrhörer- und Netzadapteranschluss. |
| Net weight (2.2 lb = 1 kg) | 0.4 kg / 0 lb 14.1 oz (0.881 lb) |
| Price in first year of sale | 39.00 DM |
| Source of data | - - Data from my own collection / Radiokatalog Band 2, Ernst Erb |
| Mentioned in | Weltempfänger Testbuch 1988/89 Nils Schiffhauer |
Model page created by Gert Buckendahl. See "Data change" for further contributors.
