• Country
• Brazil

• Manufacturer / Brand
• Douglas Radioelétrica S.A.; São Paulo

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 275465

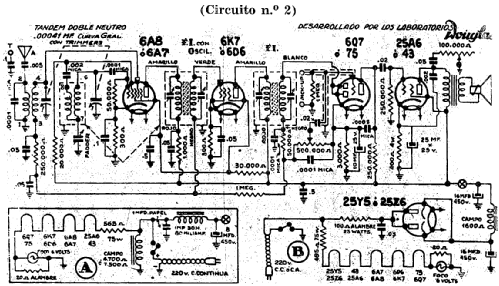

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 or 6A7 6K7 or 6D6 6Q7 or 75 25A6 or 43 25Y5 or 25Z6

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: 24C circuito 2 - Douglas Radioelétrica S.A.;

• Notes

• The model 24C from Douglas Radioelétrica has 2 distinct versions

  MODEL	CHARACTERISTIC
  24C circuit 1	6A7 converter, parallel connected filaments, ac
  24C circuit 2	6A7 converter, series connected filaments, ac dc

  2 sections variable capacitor with trimmers (2x 410 pF)
  Tone control
  Phono input
  Supplied in kit format

  Receptor Douglas fornecido em kit, em duas versões.
