Earth Station Receiver ESR 240A

Earth Station Receiver ESR 240A; Drake, R.L. (ID = 1201226) DIG/SAT Earth Station Receiver ESR 240A; Drake, R.L. (ID = 1201227) DIG/SAT
Earth Station Receiver ESR 240A; Drake, R.L. (ID = 1201228) DIG/SAT Earth Station Receiver ESR 240A; Drake, R.L. (ID = 1201229) DIG/SAT
Use red slider bar for more.
Earth Station Receiver ESR 240A; Drake, R.L. (ID = 1201226) DIG/SAT

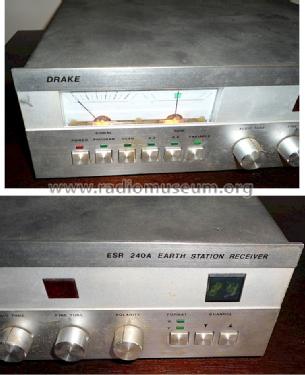

Drake, R.L.: Earth Station Receiver ESR 240A [DIG/SAT] ID = 1201226 800x441
Select picture or schematic to display from thumbnails on the right and click for download.
For model Earth Station Receiver ESR 240A, Drake, R.L. Miamisburg, Ohio:
Ebay auction by user zooka66 150769946976

Country:  United States of America (USA)
Manufacturer / Brand:  Drake, R.L. Miamisburg, Ohio
Year: 1984 ? Category: Digital terrestrial, Internet and SAT receiver (also analogue)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion
Wave bands SAT-IF
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Earth Station Receiver ESR 240A - Drake, R.L. Miamisburg, Ohio
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 13.25 x 4.25 x 12 inch / 337 x 108 x 305 mm
Notes Drake ESR 240A Earth Station Receiver (unproven type: 2225);

Manual separate video & audio channel tuning only, needs a remote Down Converter. Signal & tuning meter.
Single SAT Receiver,
24 channels,
LED program display,
SAT IF: 70 MHz, for external LNA´s.
For C-Band 3,7 bis 4,2 GHZ,
ext. LNB Voltage 15 V,
Mono,
Cinch AV. VHF band I modulator US FCC standard,
No remote control,
conventional power transformer.
Made in USA.
