Communications Receiver RR-2

Communications Receiver RR-2; Drake, R.L. (ID = 1635197) Receiver-C Communications Receiver RR-2; Drake, R.L. (ID = 2376577) Receiver-C
Communications Receiver RR-2; Drake, R.L. (ID = 2376578) Receiver-C Communications Receiver RR-2; Drake, R.L. (ID = 2376579) Receiver-C
Communications Receiver RR-2; Drake, R.L. (ID = 2376580) Receiver-C
Use red slider bar for more.
Communications Receiver RR-2; Drake, R.L. (ID = 1635197) Receiver-C
Drake, R.L.: Communications Receiver RR-2 [Receiver-C] ID = 1635197 900x451
Select picture or schematic to display from thumbnails on the right and click for download.
For model Communications Receiver RR-2, Drake, R.L. Miamisburg, Ohio:
Katalog Hannes Bauer, 1978

Country:  United States of America (USA)
Manufacturer / Brand:  Drake, R.L. Miamisburg, Ohio
Year: 1975–1981 ? Category: Commercial Receiver (may include amateur bands)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion; ZF/IF 5648 / 50 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 120/240 AC - 24 DC Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Communications Receiver RR-2 - Drake, R.L. Miamisburg, Ohio
Material Metal case
Shape Rack
Dimensions (WHD) 482 x 279 x 178 mm / 19 x 11 x 7 inch
Notes

Maritime communications receiver, coverage 150 kHz - 30 MHz; AM, USB/LSB, RTTY (with the addition of the RY-4 Radioteletype Adapter). Allwave coverage with internal frequency synthesizer similar to combination of SPR-4 and external FS-4 synthesizer.
Also sold by SAIT Electronics, Bruxelles under the name SAIT MR1542.

Net weight (2.2 lb = 1 kg) 6.4 kg / 14 lb 1.6 oz (14.097 lb)
Price in first year of sale 3'773.00 CHF

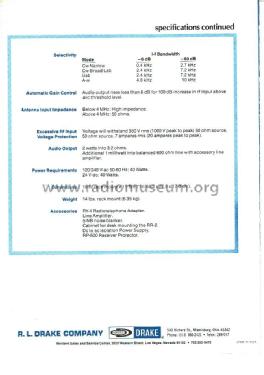

Source of data -- Original prospect or advert
Mentioned in -- Original-techn. papers. (Instruction Manual)

Model page created by Martin Bösch. See "Data change" for further contributors.
