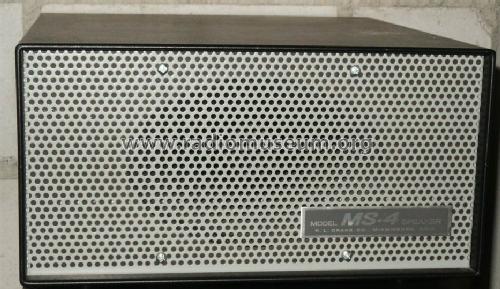

For model MS-4, Drake, R.L. Miamisburg, Ohio:
Sold, Jan 2012
Country:  United States of America (USA)
Manufacturer / Brand:  Drake, R.L. Miamisburg, Ohio
Year: 1964 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Model: MS-4 - Drake, R.L. Miamisburg, Ohio
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 140 x 273 x 283 mm / 5.5 x 10.7 x 11.1 inch

External speaker matching Drake 4 line (R-4, T-4, TR-4 et al.).

The Drake power supply AC-4 can be stored inside the MS-4 cabinet.

Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)
Source of data - - Data from my own collection

Model page created by Martin Bösch. See "Data change" for further contributors.
