R-4A

R-4A; Drake, R.L. (ID = 370145) Amateur-R

R-4A; Drake, R.L. (ID = 370149) Amateur-R

R-4A; Drake, R.L. (ID = 370153) Amateur-R

R-4A; Drake, R.L. (ID = 370154) Amateur-R

R-4A; Drake, R.L. (ID = 370155) Amateur-R

R-4A; Drake, R.L. (ID = 370156) Amateur-R

R-4A; Drake, R.L. (ID = 370157) Amateur-R

R-4A; Drake, R.L. (ID = 370699) Amateur-R

R-4A; Drake, R.L. (ID = 370700) Amateur-R

R-4A; Drake, R.L. (ID = 370701) Amateur-R
R-4A; Drake, R.L. (ID = 186427) Amateur-R R-4A; Drake, R.L. (ID = 186430) Amateur-R
R-4A; Drake, R.L. (ID = 186431) Amateur-R R-4A; Drake, R.L. (ID = 186428) Amateur-R

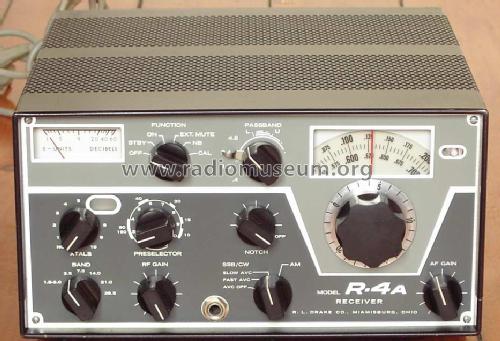

R-4A; Drake, R.L. (ID = 186429) Amateur-R R-4A; Drake, R.L. (ID = 402293) Amateur-R
Use red slider bar for more.
R-4A; Drake, R.L. (ID = 186427) Amateur-R
Drake, R.L.: R-4A [Amateur-R] ID = 186427 837x592
Select picture or schematic to display from thumbnails on the right and click for download.

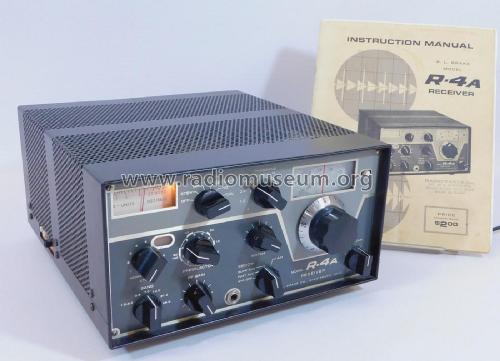

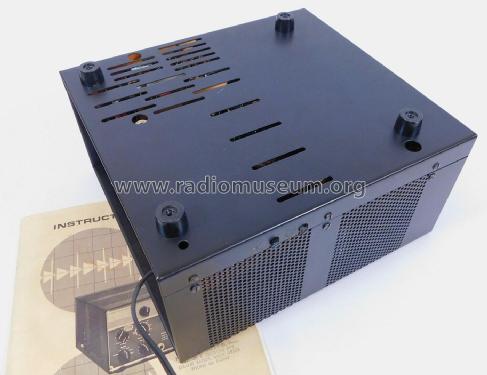

For model R-4A, Drake, R.L. Miamisburg, Ohio:
eBay seller: kk265 (GB). #5872739617

Country:  United States of America (USA)
Manufacturer / Brand:  Drake, R.L. Miamisburg, Ohio
Year: 1966/1967 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Valves / Tubes 12: 12BZ6 12BA6 6HS6 6HS6 12BE6 12BA6 12BA6 12AV6 6GX6 6EH5 12BA6 12AX7A 0B2
Main principle Superhet, double/triple conversion; ZF/IF 5645/50 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 120/240 Volt
Loudspeaker - For headphones or amp.
Power out 1.4 W (unknown quality)
from Radiomuseum.org Model: R-4A - Drake, R.L. Miamisburg, Ohio
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 140 x 273 x 297 mm / 5.5 x 10.7 x 11.7 inch
Notes Coverage 80 - 10 m ham bands and 10 additional crystal controlled 500 kHz segments within 1,5 - 30 MHz, AM, LSB/USB;
different variants with electrical changes and variations in tube layout, in later models AVC and audio amps replaced by semiconductors;
optional MS-4 external speaker, matching to T-4 / T-4X transmitters and FS-4 frequency synthesizer.
Net weight (2.2 lb = 1 kg) 7.3 kg / 16 lb 1.3 oz (16.079 lb)
Price in first year of sale 379.00 $
Collectors' prices
Source of data Communications Receivers
Mentioned in Shortwave Receivers - Past & Present (3rd ed.)

Model page created by Martin Bösch. See "Data change" for further contributors.
