R-4B; Drake, R.L. (ID = 71472) Amateur-R

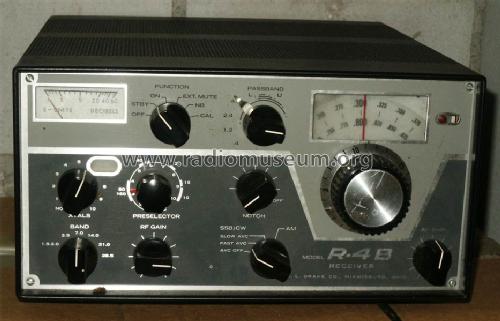

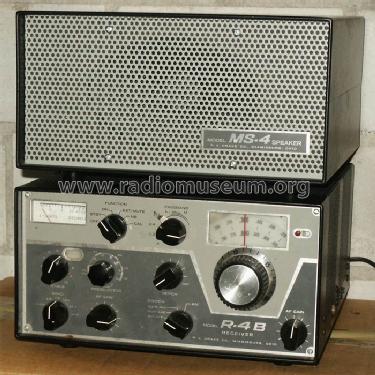

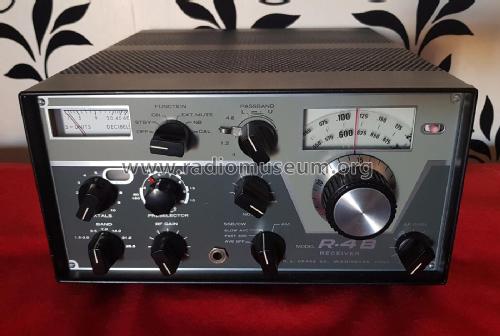

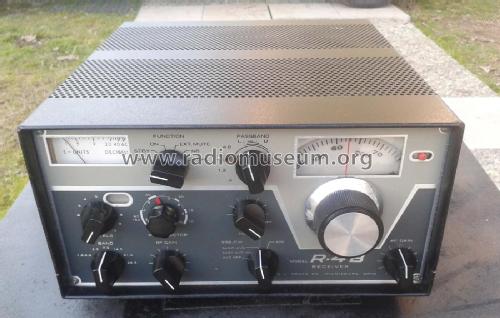

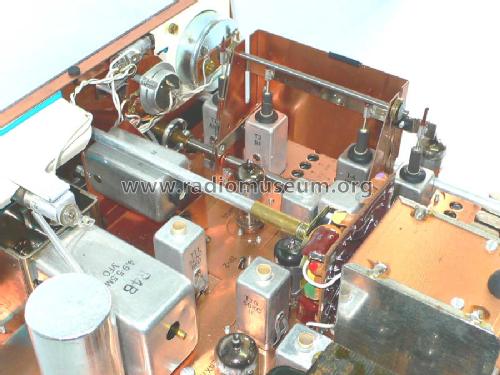

Drake, R.L.: R-4B [Amateur-R] ID = 71472 933x539
Select picture or schematic to display from thumbnails on the right and click for download.
For model R-4B, Drake, R.L. Miamisburg, Ohio

Country:  United States of America (USA)
Manufacturer / Brand:  Drake, R.L. Miamisburg, Ohio
Year: 1967–1973 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Valves / Tubes 9: 6BZ6 6HS6 12BE6 12BA6 12BA6 6EH5 6HS6 12BA6 12AX7A
Semiconductors (the count is only for transistors) 10: 2N3394 TIS34 2N3858 2N3877 2N3394 2N3394 2N3394 TIS34 2N3394 2N3877
Main principle Superhet, double/triple conversion; ZF/IF 5645 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 120/240 Volt
Loudspeaker - For headphones or amp.
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: R-4B - Drake, R.L. Miamisburg, Ohio
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 274 x 140 x 297 mm / 10.8 x 5.5 x 11.7 inch
Notes Triple conversion. 80 to 10 meters HAM-bands plus ten additional 500 KHz ranges, AM/CW/SSB, passband-tuning, IF-notch-filter. Optional synthesizer FS-4 for continuous coverage. Needs external speaker. Matches transmitter T-4XB.
17 Diodes; 2 ICs.
Net weight (2.2 lb = 1 kg) 7.3 kg / 16 lb 1.3 oz (16.079 lb)
Price in first year of sale 400.00 $
Collectors' prices
Source of data Shortwave Receivers - Past & Present (3rd ed.)

Model page created by Martin Bösch. See "Data change" for further contributors.
