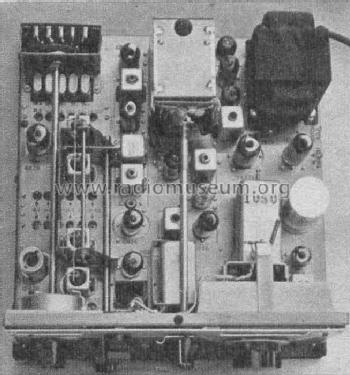

Drake, R.L.: R-4 [Amateur-R] ID = 496711 933x507
Select picture or schematic to display from thumbnails on the right and click for download.
For model R-4, Drake, R.L. Miamisburg, Ohio:
Aufnahme von Funkflohmarkt

Country:  United States of America (USA)
Manufacturer / Brand:  Drake, R.L. Miamisburg, Ohio
Year: 1964/1965 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Valves / Tubes 13: 12BZ6 12BA6 6HS6 6AU6 6KZ8 12BE6 12BA6 12BA6 12AV6 6GX6 6EH5 12BA6 12AX7 0B2
Main principle Superhet, double/triple conversion; ZF/IF 5645/50 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 120/240 Volt
Loudspeaker - For headphones or amp.
Power out 1.4 W (unknown quality)
from Radiomuseum.org Model: R-4 - Drake, R.L. Miamisburg, Ohio
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 140 x 273 x 297 mm / 5.5 x 10.7 x 11.7 inch
Notes Covers 80 - 10m ham bands plus 10 crystal controlled 500 kHz segments within 1,5 - 30 MHz, AM, LSB/USB;
optional MS-4 external speaker, matching T-4 or TX-4 transmitter.
Net weight (2.2 lb = 1 kg) 7.3 kg / 16 lb 1.3 oz (16.079 lb)
Price in first year of sale 379.00 $
Collectors' prices
Source of data Communications Receivers
Mentioned in Shortwave Receivers - Past & Present (3rd ed.)

Model page created by Martin Bösch. See "Data change" for further contributors.
