Sideband Transceiver TR-3

Sideband Transceiver TR-3; Drake, R.L. (ID = 370112) Amateur

Sideband Transceiver TR-3; Drake, R.L. (ID = 370113) Amateur
Sideband Transceiver TR-3; Drake, R.L. (ID = 367555) Amateur Sideband Transceiver TR-3; Drake, R.L. (ID = 367559) Amateur
Sideband Transceiver TR-3; Drake, R.L. (ID = 367560) Amateur Sideband Transceiver TR-3; Drake, R.L. (ID = 367561) Amateur
Sideband Transceiver TR-3; Drake, R.L. (ID = 427661) Amateur Sideband Transceiver TR-3; Drake, R.L. (ID = 1915830) Amateur
Sideband Transceiver TR-3; Drake, R.L. (ID = 1915831) Amateur Sideband Transceiver TR-3; Drake, R.L. (ID = 1915832) Amateur
Use red slider bar for more.
Sideband Transceiver TR-3; Drake, R.L. (ID = 367555) Amateur

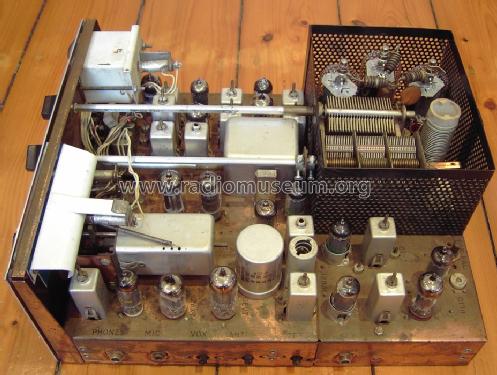

Drake, R.L.: Sideband Transceiver TR-3 [Amateur] ID = 367555 898x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sideband Transceiver TR-3, Drake, R.L. Miamisburg, Ohio

Country:  United States of America (USA)
Manufacturer / Brand:  Drake, R.L. Miamisburg, Ohio
Year: 1963 Category: Amateur Transmitter/Receiver (and Transceiver)
Valves / Tubes 19: 12AX7A 6EV7 6GX6 12BA6 12BA6 12BA6 12AX7A 6AQ5A 6HS6 6EA8 6EA8 6AU6A 13DE7 12BA6 12BA6 12BY7A 12JB6 12JB6 12JB6 0A2
Main principle Superhet, double/triple conversion
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Powered by external power supply or a main unit. / 650 & 250 & -65 & 12,6 Volt
Loudspeaker - This model requires external speaker(s).
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Sideband Transceiver TR-3 - Drake, R.L. Miamisburg, Ohio
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 10.75 x 5.5 x 14.75 inch / 273 x 140 x 375 mm
Notes transceiver covering 80 - 10m ham bands, AM,SSB, CW;
internal crystal calibrator, matching MS-3 external speaker, matching external AC-3 mains or DC-3 battery power supply, matching RV-3 external VFO / speaker, matching MMK-3 mobile mounting kit or MC-4 mobile console;
pout SSB 300 W, CW and AM 260 W.
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 550.00 $
Collectors' prices

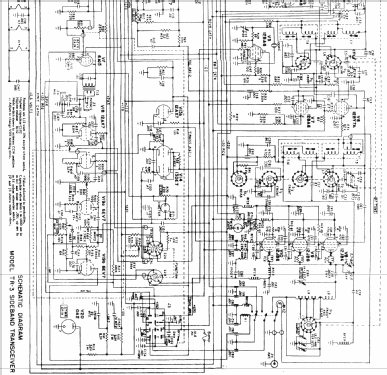

Literature/Schematics (1) -- Schematic
