Transmitter T-4XB

Transmitter T-4XB; Drake, R.L. (ID = 206112) Amateur-T

Transmitter T-4XB; Drake, R.L. (ID = 206113) Amateur-T
Transmitter T-4XB; Drake, R.L. (ID = 206120) Amateur-T Transmitter T-4XB; Drake, R.L. (ID = 655295) Amateur-T
Transmitter T-4XB; Drake, R.L. (ID = 206121) Amateur-T Transmitter T-4XB; Drake, R.L. (ID = 206122) Amateur-T
Transmitter T-4XB; Drake, R.L. (ID = 275481) Amateur-T Transmitter T-4XB; Drake, R.L. (ID = 655294) Amateur-T
Transmitter T-4XB; Drake, R.L. (ID = 655296) Amateur-T
Use red slider bar for more.
Transmitter T-4XB; Drake, R.L. (ID = 206120) Amateur-T

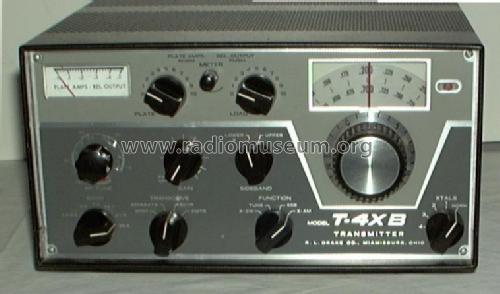

Drake, R.L.: Transmitter T-4XB [Amateur-T] ID = 206120 758x446
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transmitter T-4XB, Drake, R.L. Miamisburg, Ohio

Country:  United States of America (USA)
Manufacturer / Brand:  Drake, R.L. Miamisburg, Ohio
Year: 1967 ? Category: Amateur Transmitter (only)
Valves / Tubes 10: 12BA6 12BY7 6JB6 6JB6 12AX7 6EV7 6HS6 6AU6 12AX7 6AU6 0A2
Semiconductors (the count is only for transistors) 3: 2N706 2N3858 2N3394
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Transmitter T-4XB - Drake, R.L. Miamisburg, Ohio
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 10.75 x 5.5 x 12.25 inch / 273 x 140 x 311 mm
Notes Drake SSB-/CW-/AM-Transmitter t-4XB.
Matching the R-4B receiver, coverage 80 - 10 meters HAM bands. Needs external power supply AC-4.
Net weight (2.2 lb = 1 kg) 6.4 kg / 14 lb 1.6 oz (14.097 lb)
Price in first year of sale 430.00 $

Model page created by Martin Bösch. See "Data change" for further contributors.
