Würfelspule

Würfelspule ; Dralowid-Werk (ID = 1584356) Radio part
Würfelspule ; Dralowid-Werk (ID = 1344128) Radio part
Use red slider bar for more.
Würfelspule ; Dralowid-Werk (ID = 1344128) Radio part

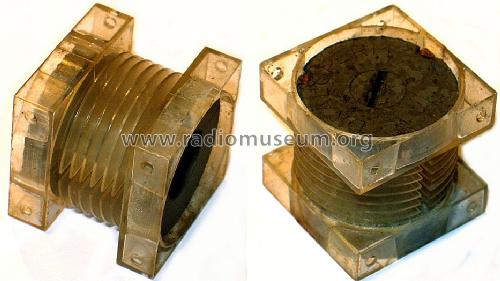

Dralowid-Werk: Würfelspule [Radio part] ID = 1344128 933x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Würfelspule, Dralowid-Werk

Country:  Germany
Manufacturer / Brand:  Dralowid-Werk
alternative name

Steatit-Magnesia AG
Year: 1938 ?? Category: Radio part (not a module)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Würfelspule - Dralowid-Werk
Dimensions (WHD) 24 x 24 x 24 mm / 0.9 x 0.9 x 0.9 inch
Notes

7-Kammer-Spulenkörper in Würfelform mit Körper aus Draloperm (HF-Eisen) und verstellbarem Abgleichkern.

Source of data -- Original-techn. papers.

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
