1004S

1004S; Dual, Gebr. (ID = 762587) R-Player
1004S; Dual, Gebr. (ID = 2004815) R-Player 1004S; Dual, Gebr. (ID = 2004817) R-Player
1004S; Dual, Gebr. (ID = 2004828) R-Player 1004S; Dual, Gebr. (ID = 2004829) R-Player
1004S; Dual, Gebr. (ID = 2004830) R-Player 1004S; Dual, Gebr. (ID = 2004831) R-Player
1004S; Dual, Gebr. (ID = 2004832) R-Player 1004S; Dual, Gebr. (ID = 2004833) R-Player
1004S; Dual, Gebr. (ID = 741194) R-Player
Use red slider bar for more.
1004S; Dual, Gebr. (ID = 2004815) R-Player
Dual, Gebr.: 1004S [R-Player] ID = 2004815 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1004S, Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Country:  Germany
Manufacturer / Brand:  Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
Year: 1958–1960 Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: 1004S - Dual, Gebr. Steidinger; St.
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 328 x 218 x 273 mm / 12.9 x 8.6 x 10.7 inch
Notes

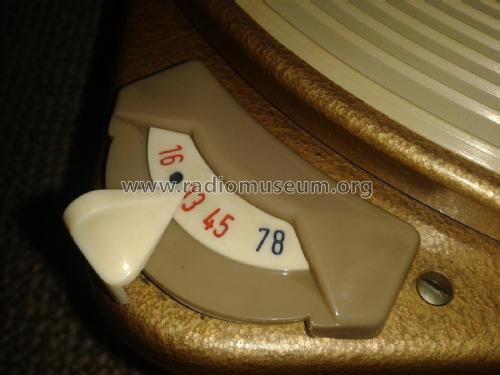

4 Geschwindigkeiten; Stereo-Kristall-System CDS320, 20-16000 Hz.

Ersatznadel: Duplo-Saphirnadel DN2

Net weight (2.2 lb = 1 kg) 4.3 kg / 9 lb 7.5 oz (9.471 lb)
Price in first year of sale 161.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1959/60 / Radiokatalog Band 2, Ernst Erb
Mentioned in Handbuch Rundfunk Fernsehen Phono (RFP) 1958/59, S.259
