1236; Dual, Gebr. (ID = 2578235) R-Player
Dual, Gebr.: 1236 [R-Player] ID = 2578235 1024x794
Select picture or schematic to display from thumbnails on the right and click for download.

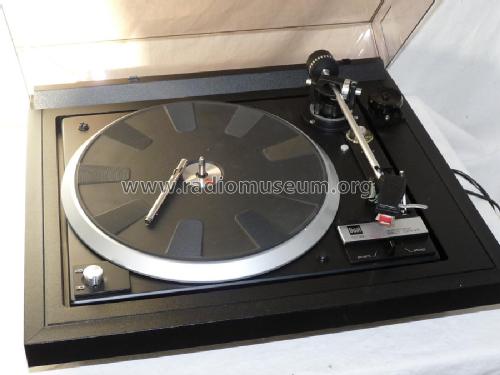

For model 1236, Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Country:  Germany
Manufacturer / Brand:  Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
Year: 1977/1978 Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-125; 220-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 1236 - Dual, Gebr. Steidinger; St.
Shape Chassis only or for «building in»
Dimensions (WHD) 329 x 120 x 274 mm / 13 x 4.7 x 10.8 inch
Notes

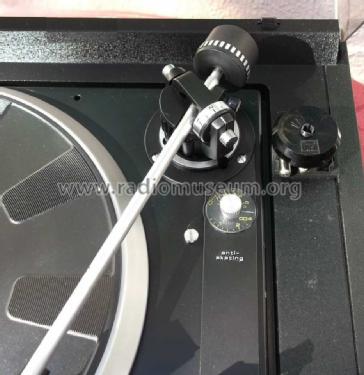

HiFi-Automatikspieler, 33/45 UpM, Anti-Skating.
Nur als Chassis für die Einbauindustrie gefertigt!

Chassistiefe mit überhängenen Teilen: 285 mm.

Stereo-Magnet-System vom Typ DMS 220; Nadelträger DN221 mit 15μm Diamant-Nadel.

Net weight (2.2 lb = 1 kg) 3.8 kg / 8 lb 5.9 oz (8.37 lb)
Source of data Handbuch VDRG 1977/1978
Mentioned in Service-Manual DUAL DMS220 als Beilage in der Bedienungsanleitung

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
