AM/FM Stereo Synthesizer Receiver CR 1020
Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1990 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 263996

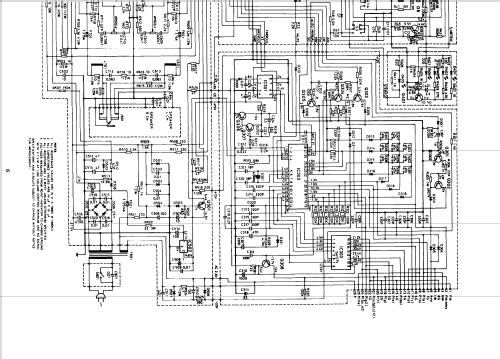

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 56 W (70 W max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: AM/FM Stereo Synthesizer Receiver CR 1020 - Dual, Gebr. Steidinger; St.
- Shape
- Book-shelf unit.
- Notes
-
Dual 3Band Synthesizer Receiver Model CR 1020.
RMS continuous power output: 2x 28 Watts into 8 Ohms
Music Power: 2x 35 Watts into 8 Ohms
Frequency Response 20-20000Hz; 0,09%
Phono IN, Tape/CD IN
Power Consumption max. 230 Watts.
FM 87,5 - 108 MHz, AM 522 - 1611 kHz, LW 155 - 353 kHz
7 Station Presets (FM, AM)
- Mentioned in
- - - Manufacturers Literature (Service-Anleitung)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
