C939

Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Year
1977/1978

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
97270

Schematics

C939; Dual, Gebr. (ID = 1359987) R-Player — Dual, Gebr. C939 (3)

C939; Dual, Gebr. (ID = 1359988) R-Player — Dual, Gebr. C939 (3)

C939; Dual, Gebr. (ID = 1359989) R-Player — Dual, Gebr. C939 (3)

C939; Dual, Gebr. (ID = 1359990) R-Player — Dual, Gebr. C939 (3)

C939; Dual, Gebr. (ID = 1359991) R-Player — Dual, Gebr. C939 (3)

C939; Dual, Gebr. (ID = 1359993) R-Player — Dual, Gebr. C939 (3)

C939; Dual, Gebr. (ID = 1359995) R-Player — Dual, Gebr. C939 (3)

C939; Dual, Gebr. (ID = 1359998) R-Player — Dual, Gebr. C939 (3)

C939; Dual, Gebr. (ID = 1359999) R-Player — Dual, Gebr. C939 (3)

C939; Dual, Gebr. (ID = 1360000) R-Player — Dual, Gebr. C939 (3)

C939; Dual, Gebr. (ID = 1360001) R-Player — Dual, Gebr. C939 (3)

C939; Dual, Gebr. (ID = 1360002) R-Player — Dual, Gebr. C939 (3)

C939; Dual, Gebr. (ID = 1360003) R-Player — Dual, Gebr. C939 (3)

C939; Dual, Gebr. (ID = 1360004) R-Player — Dual, Gebr. C939 (3)

C939; Dual, Gebr. (ID = 1360005) R-Player — Dual, Gebr. C939 (3)

C939; Dual, Gebr. (ID = 1360006) R-Player — Dual, Gebr. C939 (3)

C939; Dual, Gebr. (ID = 1360008) R-Player — Dual, Gebr. C939 (3)

C939; Dual, Gebr. (ID = 1360010) R-Player — Dual, Gebr. C939 (3)

C939; Dual, Gebr. (ID = 2366828) R-Player — Dual, Gebr. C939 (1)

C939; Dual, Gebr. (ID = 2366827) R-Player — Dual, Gebr. C939 (1)

C939; Dual, Gebr. (ID = 2366829) R-Player — Dual, Gebr. C939 (1)

C939; Dual, Gebr. (ID = 2366833) R-Player — Dual, Gebr. C939 (1)

C939; Dual, Gebr. (ID = 2366831) R-Player — Dual, Gebr. C939 (1)

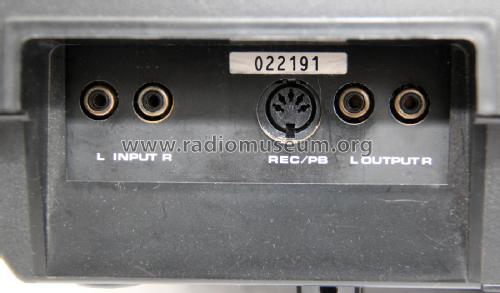

C939; Dual, Gebr. (ID = 2366832) R-Player — Dual, Gebr. C939 (1)

C939; Dual, Gebr. (ID = 2366834) R-Player — Dual, Gebr. C939 (1)

C939; Dual, Gebr. (ID = 2366835) R-Player — Dual, Gebr. C939 (1)

C939; Dual, Gebr. (ID = 2369667) R-Player — Dual, Gebr. C939 (1)

C939; Dual, Gebr. (ID = 424868) R-Player — Dual, Gebr. C939 (1)

C939; Dual, Gebr. (ID = 424869) R-Player — Dual, Gebr. C939 (1)

C939; Dual, Gebr. (ID = 424872) R-Player — Dual, Gebr. C939 (1)

C939; Dual, Gebr. (ID = 212856) R-Player — Dual, Gebr. C939 (2)

C939; Dual, Gebr. (ID = 215523) R-Player — Dual, Gebr. C939 (1)

C939; Dual, Gebr. (ID = 424870) R-Player — Dual, Gebr. C939 (1)

C939; Dual, Gebr. (ID = 483581) R-Player — Dual, Gebr. C939 (1)

C939; Dual, Gebr. (ID = 1422813) R-Player — Dual, Gebr. C939 (1)

C939; Dual, Gebr. (ID = 2730376) R-Player — Dual, Gebr. C939 (1)

C939; Dual, Gebr. (ID = 2730378) R-Player — Dual, Gebr. C939 (1)

C939; Dual, Gebr. (ID = 2730379) R-Player — Dual, Gebr. C939 (1)
PCB Grundplatte 243188

C939; Dual, Gebr. (ID = 2730380) R-Player — Dual, Gebr. C939 (1)
PCB Aufnahmeverstärker 235482

C939; Dual, Gebr. (ID = 2730381) R-Player — Dual, Gebr. C939 (1)
PCB Ausgangsverstärker 242181

C939; Dual, Gebr. (ID = 2730382) R-Player — Dual, Gebr. C939 (1)
PCB Buchsenplatte 243187

C939; Dual, Gebr. (ID = 2730383) R-Player — Dual, Gebr. C939 (1)
PCB Dolbyeinheit 235484

C939; Dual, Gebr. (ID = 2730384) R-Player — Dual, Gebr. C939 (1)
PCB Generatorplatte 243184

C939; Dual, Gebr. (ID = 2730385) R-Player — Dual, Gebr. C939 (1)
PCB LED-Anzeige 243179

C939; Dual, Gebr. (ID = 2730386) R-Player — Dual, Gebr. C939 (1)
PCB Netzteil 241732

C939; Dual, Gebr. (ID = 2730387) R-Player — Dual, Gebr. C939 (1)
PCB Reglerplatte 243185

C939; Dual, Gebr. (ID = 2730388) R-Player — Dual, Gebr. C939 (1)
PCB Stummschalter 243180

C939; Dual, Gebr. (ID = 2730389) R-Player — Dual, Gebr. C939 (1)
PCB Tastenplatte 243183

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
50

Semiconductors

Main principle
Audio-Amplification

Wave bands
- without

Details
Cassette-Recorder or -Player

Power type and voltage
Alternating Current supply (AC) / 110-125; 220-240 Volt

Loudspeaker
- For headphones or amp.

Material
Wooden case

from Radiomuseum.org
Model: C939 - Dual, Gebr. Steidinger; St.

Shape
Tablemodel with Push Buttons.

Dimensions (WHD)
440 x 150 x 300 mm / 17.3 x 5.9 x 11.8 inch

Notes
ICs: 4.
HiFi-Stereo-Cassetten-Deck. Übertragungsbereich mit CrO₂-Band 20···16000 Hz, mit FeCr-Band 20···17000 Hz.
Ausführungen: C939 in nussbaumfarbener Flach-Konsole; C939S in schwarzer Flach-Konsole.

Net weight (2.2 lb = 1 kg)
7.7 kg / 16 lb 15.4 oz (16.96 lb)

Source of data
Handbuch VDRG 1977/1978

Mentioned in
-- Original-techn. papers.

Author
Model page created by Peter Samland. See "Data change" for further contributors.
