• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1968–1970

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 112579

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 2 Loudspeakers

• Power out
• 20 W (35 W max.)

• Material
• Wooden case

• from Radiomuseum.org

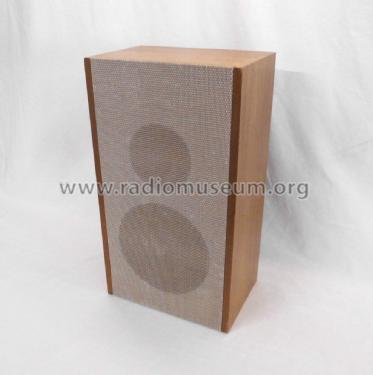

• Model: CL14 - Dual, Gebr. Steidinger; St.

• Dimensions (WHD)
• 270 x 480 x 180 mm / 10.6 x 18.9 x 7.1 inch

• Notes

• Dual CL 14

  2-Weg-HiFi-Lautsprecherbox, Nennbelastbarkeit 20 W; Grenzbelastbarkeit 35 W; Übertragungsbereich 35 - 20.000 Hz; Impendanz 4 Ohm;

  • Tieftonlautsprecher (Isophon) Ø 203 mm, Schwingspule  Ø 25 mm
  • Mittelhochtonlautsprecher Ø 130 mm, Schwingspule  Ø 19 mm

  2 Frequenzweichen, Trennfrequenz 1.500 Hz, Betriebsleistung 2,9 Watt, Eigenresonanz der Box ca 65 Hz, Gehäuse: Holz Nussbaum Natur.

• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

• Price in first year of sale
• 148.00 DM

• Mentioned in
• -- Original-techn. papers. (Dual Programme 1968/69 und 1969/70, Serviceanleitung 10/68, Preisliste 1968/69)

• Author
• Model page created by Wolfgang Winkler. See "Data change" for further contributors.
