• Year
  • 1969–1971
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 112687

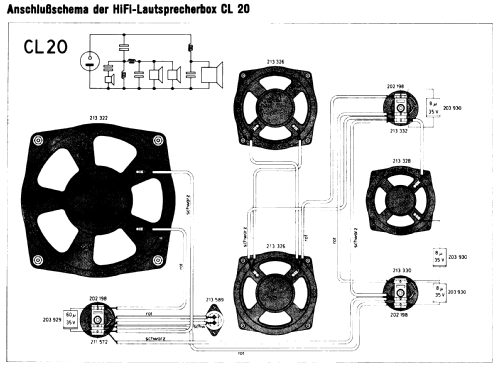

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

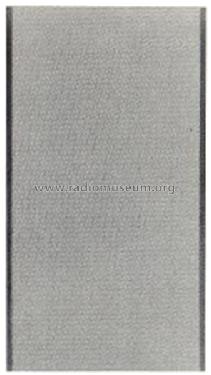

  • Model: CL20 - Dual, Gebr. Steidinger; St.
  • Dimensions (WHD)
  • 360 x 650 x 240 mm / 14.2 x 25.6 x 9.4 inch
  • Notes
  • Nennbelastbarkeit 40 W; Grenzbelastbarkeit 50 W; Übertragungsbereich 20 - 25000 Hz; Impendanz 4 Ohm; 1 Tieftonlautsprecher 245 mm Ø; 2 Mitteltonlautsprecher 105 mm Ø; 1 Hochtonlautsprecher 25 mm Ø; 4 Frequenzweichen.
    Gehäuse: Holz Nussbaum Natur.
  • Net weight (2.2 lb = 1 kg)
  • 15.6 kg / 34 lb 5.8 oz (34.361 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Winkler. See "Data change" for further contributors.
