- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1970/1971
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 284649
Besonders grosser Magnet
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 2 Loudspeakers
- Power out
- 40 W (50 W max.)
- Material
- Wooden case
- from Radiomuseum.org

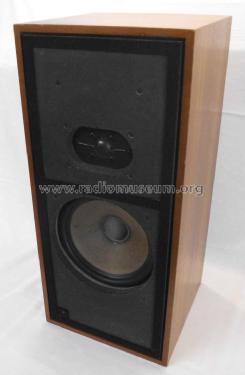

- Model: CL 82 - Dual, Gebr. Steidinger; St.
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 250 x 550 x 240 mm / 9.8 x 21.7 x 9.4 inch
- Notes
-
2 Weg - HiFi Lautsprecherbox mit hoher Belastbarkeit.

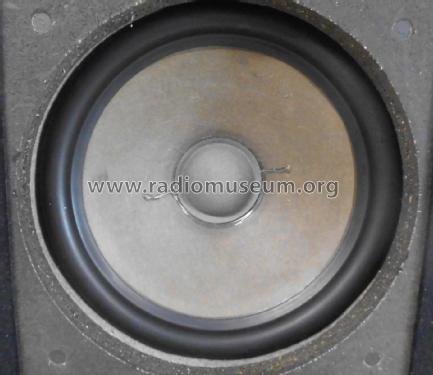

1 Tieftonlautsprecher ø 200 mm, 1 Hochtonkalottenlautsprecher ø 25 mm, Nennbelastbarkeit 40 Watt, Musikbelastbarkeit 50 Watt, Impedanz 4 Ω, Übertragungsbereich 25 bis 25000 Hz nach DIN 45500, Holzausführungen Nußbaum, festes Alu-Metallgitter, Anschluß: versenkte DIN Normbuchse.
- Net weight (2.2 lb = 1 kg)
- 8.7 kg / 19 lb 2.6 oz (19.163 lb)
- Price in first year of sale
- 310.00 DM
- Mentioned in
- -- Original prospect or advert (Dual Stereo + HiFi Programm Übersicht 1971/72)
- Author
- Model page created by Michael Lienhop. See "Data change" for further contributors.
