- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1975–1978
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 124207
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-130; 220-240 Volt
- Loudspeaker
- - For headphones or amp.
- from Radiomuseum.org

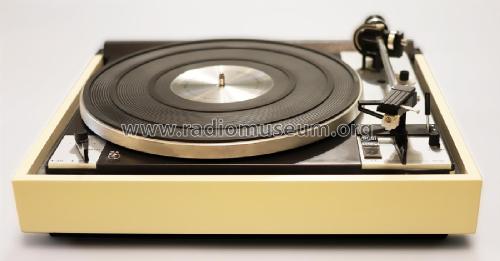

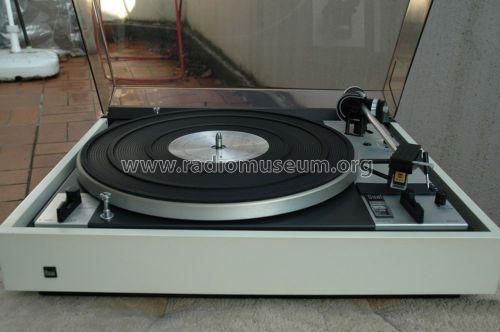

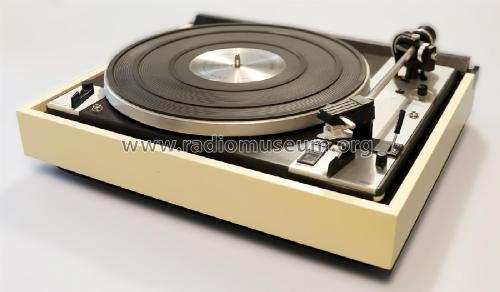

- Model: CS601W - Dual, Gebr. Steidinger; St.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 420 x 148 x 365 mm / 16.5 x 5.8 x 14.4 inch
- Notes
- HiFi-Automatikspieler mit Flachriemenantrieb in weisser Kompakt-Konsole. 33/45 UpM, Anti-Skating, Pitch-Control.
Siehe auch CS601 in nussbaumfarbener Kompakt-Konsole und CS601S in schwarzer Kompakt-Konsole.
Plattenteller 305mm, 1,3 kg. Drehzahlkontrolle mit Leuchtstroboskop.
HiFi-Stereo Magnet-Tonabnehmersystem Dual M20E mit elliptischer Nadel
- Net weight (2.2 lb = 1 kg)
- 7.6 kg / 16 lb 11.8 oz (16.74 lb)
- Source of data
- Handbuch VDRG 1975/1976
- Mentioned in
- Handbuch VDRG 1976/1977 (und 1977/78)
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
