• Year
  • 1986
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 142196

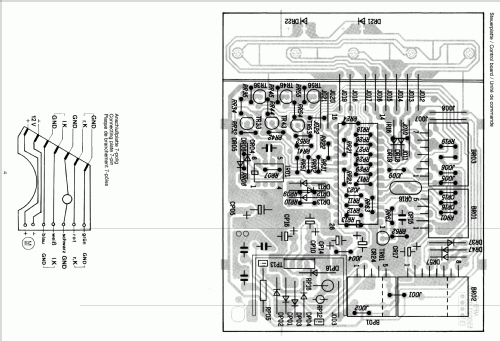

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: CS610Q - Dual, Gebr. Steidinger; St.
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 440 x 111 x 364 mm / 17.3 x 4.4 x 14.3 inch
  • Notes
  • Semi-Automatikspieler mit Autoreturn und quartzgesteuertem Direktantrieb.
    L.M.-Tonarm mit Magnetsystem Dual DMS 239.
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
