• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1978

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 175295

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• BC172 BC172 BC238 BD415 NS555 NS4069 ZPD7,5 1N4001

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-125; 220-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Electronic Direct Drive CS491, CS491S - Dual, Gebr. Steidinger; St.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 424 x 150 x 368 mm / 16.7 x 5.9 x 14.5 inch

• Notes

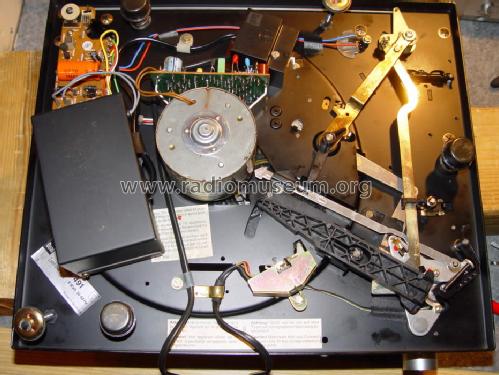

• The Dual CS491 is a two-speed, direct-drive turntable system with chassis 491.
  Motor: EDS 500 electronically controlled direct drive.
  Speeds: 33.33 and 45 rpm
  Platter: 1.0 kg, 270 mm diameter
  Pitch control: 10%
  Wow and flutter: +-0.08% WRMS
  Rumble: >63dB.

  Zum Umstellen der Netzspannung muss das Gerät geöffnet werden.

  Zarge aus Pressspan, 2 Ausführungen:

  • CS491 in nußbaum
  • CS491S in schwarz

• Net weight (2.2 lb = 1 kg)
• 6.4 kg / 14 lb 1.6 oz (14.097 lb)

• Price in first year of sale
• 298.00 DM

• Mentioned in

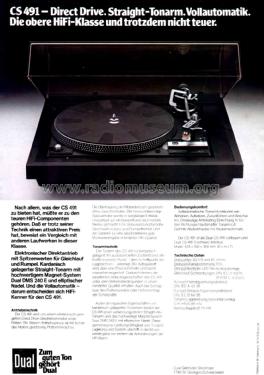

• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Jaroslav Hlavaty. See "Data change" for further contributors.
