- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1979/1980
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 134791

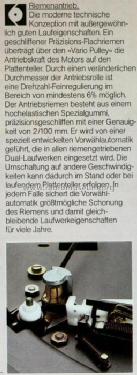

Original prospekt.
Original prospekt.

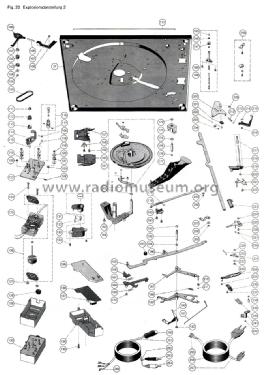

Q: Dual, Service-Unterlagen
Q: Dual, Service-Unterlagen
Q: Dual, Service-Unterlagen
Service Manual
Dual Catalogue 1981
Q: Dual, Service-Unterlagen 12.79
Q: Dual, Service-Unterlagen 12.79
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: CS 522 - Dual, Gebr. Steidinger; St.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 424 x 150 x 368 mm / 16.7 x 5.9 x 14.5 inch
- Notes
- Belt-Drive. Stroboskop.ULM tonarm. Farbe: Nußbaum, achat-schwarz und achat-braun.
- Price in first year of sale
- 269.00 DM
- Source of data
- -- Original prospect or advert
| Bedienungsanleitung DUAL CS 522 | 2861 KB |
- Documents regarding this model
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
