CT18W

CT18W; Dual, Gebr. (ID = 95128) Radio CT18W; Dual, Gebr. (ID = 381819) Radio
Use red slider bar for more.
CT18W; Dual, Gebr. (ID = 95128) Radio

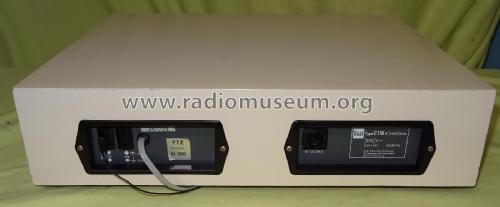

Dual, Gebr.: CT18W [Radio] ID = 95128 933x320
Select picture or schematic to display from thumbnails on the right and click for download.
For model CT18W, Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Country:  Germany
Manufacturer / Brand:  Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
Year: 1973–1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 28:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     16 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-130; 220-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: CT18W - Dual, Gebr. Steidinger; St.
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 108 x 335 mm / 16.5 x 4.3 x 13.2 inch
Notes Abstimmanzeige durch Anzeigeinstrument.
Gehäuse: Schleiflack, weiß; siehe auch CT18 in Nußbaum, natur.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 688.00 DM
External source of data Erb
Source of data Katalog RFP 1973 / Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
Here you find 861 models, 819 with images and 466 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
