- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1975–1978
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 97272
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 28
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 7 AM circuit(s) 16 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-125; 220-240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org

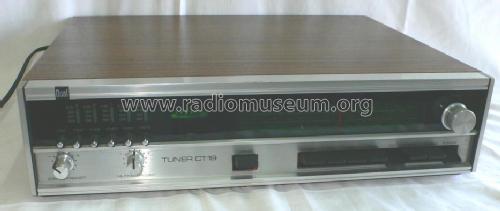

- Model: CT19 - Dual, Gebr. Steidinger; St.
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 420 x 108 x 335 mm / 16.5 x 4.3 x 13.2 inch
- Notes
- Stereo-Tuner mit zweifarbiger Frontblende und nußbaumfarbener Konsole. Siehe auch CT19W mit weißer Konsole, CT19-1 mit schwarzer Frontblende und nußbaumfarbiger Konsole sowie CT19-1W mit schwarzer Frontblende und weißer Konsole.
- Net weight (2.2 lb = 1 kg)
- 4.9 kg / 10 lb 12.7 oz (10.793 lb)
- Source of data
- Handbuch VDRG 1975/1976
- Mentioned in
- Handbuch VDRG 1976/1977 (und 1977/78)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Peter Samland. See "Data change" for further contributors.
