CTG27/2

CTG27/2; Dual, Gebr. (ID = 165859) R-Player CTG27/2; Dual, Gebr. (ID = 214268) R-Player
CTG27/2; Dual, Gebr. (ID = 2074812) R-Player
Use red slider bar for more.
CTG27/2; Dual, Gebr. (ID = 165859) R-Player
Dual, Gebr.: CTG27/2 [R-Player] ID = 165859 600x286
Select picture or schematic to display from thumbnails on the right and click for download.

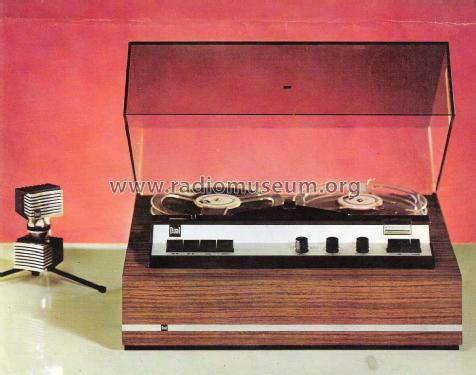

For model CTG27/2, Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Country:  Germany
Manufacturer / Brand:  Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
Year: 1967–1969 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 7: BC107 BC108 BC108 BC108 BC108 BC109 BC109
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: CTG27/2 - Dual, Gebr. Steidinger; St.
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 420 x 200 x 360 mm / 16.5 x 7.9 x 14.2 inch
Notes Vierspur-Stereo; Bandgeschwindigkeiten: 9,5/19 cm/s; Spulen-Ø: 18 cm; Frequenzbereich bei 19 cm/s: 25-16000 Hz.
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 498.00 DM
External source of data erb
Source of data Handbuch VDRG 1967/1968 / Radiokatalog Band 2, Ernst Erb
