CV12; Dual, Gebr. (ID = 397492) Ampl/Mixer

CV12; Dual, Gebr. (ID = 2513362) Ampl/Mixer

CV12; Dual, Gebr. (ID = 2513504) Ampl/Mixer

CV12; Dual, Gebr. (ID = 2513505) Ampl/Mixer

CV12; Dual, Gebr. (ID = 2513506) Ampl/Mixer

CV12; Dual, Gebr. (ID = 2513508) Ampl/Mixer

CV12; Dual, Gebr. (ID = 2513509) Ampl/Mixer

CV12; Dual, Gebr. (ID = 2513510) Ampl/Mixer

CV12; Dual, Gebr. (ID = 2513512) Ampl/Mixer

CV12; Dual, Gebr. (ID = 2513513) Ampl/Mixer
CV12; Dual, Gebr. (ID = 2513142) Ampl/Mixer CV12; Dual, Gebr. (ID = 2028684) Ampl/Mixer
CV12; Dual, Gebr. (ID = 2028685) Ampl/Mixer CV12; Dual, Gebr. (ID = 2028686) Ampl/Mixer
CV12; Dual, Gebr. (ID = 2028682) Ampl/Mixer CV12; Dual, Gebr. (ID = 2028683) Ampl/Mixer
CV12; Dual, Gebr. (ID = 333659) Ampl/Mixer CV12; Dual, Gebr. (ID = 2028303) Ampl/Mixer
CV12; Dual, Gebr. (ID = 2028304) Ampl/Mixer
Use red slider bar for more.
CV12; Dual, Gebr. (ID = 2513142) Ampl/Mixer

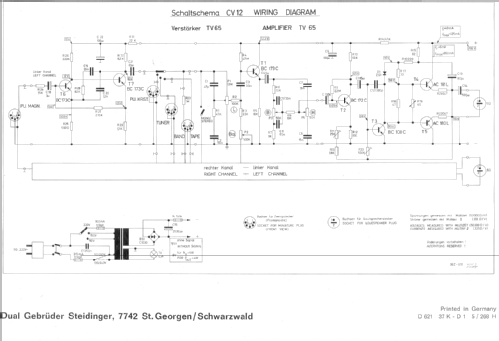

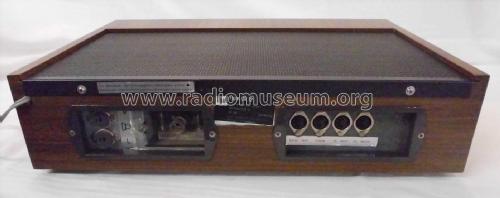

Dual, Gebr.: CV12 [Ampl/Mixer] ID = 2513142 1400x708
Select picture or schematic to display from thumbnails on the right and click for download.
For model CV12, Dual, Gebr. Steidinger; St. Georgen/Schwarzwald:
Réalisation Privée - Patrice Schoser

Country:  Germany
Manufacturer / Brand:  Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
Year: 1967/1968 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 14: BC173 BC173 BC173 BC172 BC108 AC180 AC181 ZG1 B30C1000
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 150; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 8 W (12 W max.)
from Radiomuseum.org Model: CV12 - Dual, Gebr. Steidinger; St.
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 108 x 285 mm / 16.5 x 4.3 x 11.2 inch
Notes

Stereo-NF-Verstärker mit 2 Endstufen je 6 Watt (Musik) bzw 4 Watt (Sinus).

Transistoren für einen Kanal gelistet.

Net weight (2.2 lb = 1 kg) 4.2 kg / 9 lb 4 oz (9.251 lb)
Price in first year of sale 288.00 DM
Source of data Handbuch VDRG 1967/1968

Model page created by Bernd P. Kieck. See "Data change" for further contributors.



All listed radios etc. from Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
Here you find 863 models, 821 with images and 466 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Dual, Gebr.: CV12
Threads: 1 | Posts: 1
Hits: 1092     Replies: 0
dual: Repair help layout
Vincent de Franco
03.Mar.16
  1

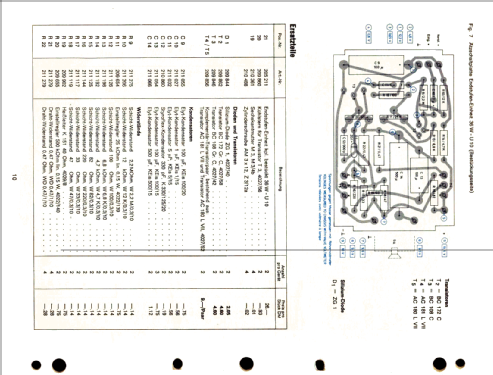

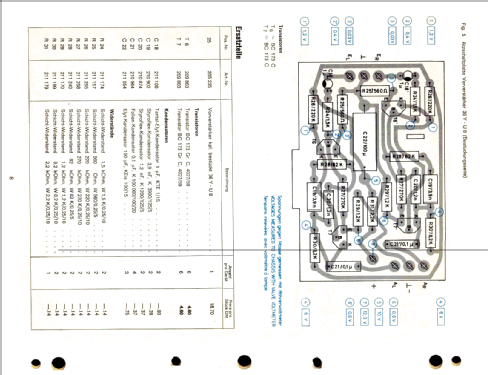

One of our visitor has realised a repair drawing of the amplifier module.
