• Year
  • 1963–1965
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 109641

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Number of Transistors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 150; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 7 W (max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: CV1 - Dual, Gebr. Steidinger; St.
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 108 x 280 mm / 16.5 x 4.3 x 11 inch
  • Notes
  • Dual CV 1 Stereo - Röhrenverstärker

    1963 stellt Dual den ersten "leistungsstarken, 2 stufigen Stereo - Vollverstärker" im Holzgehäuse, passsend zu den Componenten-Konsolen CK 1 und CK 2, vor. Zwei 4-Watt Endpentoden sorgen für 2 x 3,5 Watt maximaler Ausgangsleistung.

    Übertragungsbereich 60 - 16.000Hz
    Klirrfaktor max. 10% bei Vollaussteuerung
    Störabstand 41 dB
    Übersprechdämpfung 32dB

    Die technische Basis besteht aus dem Verstärker V26, (hier, angepasst, als V26 T5) wie auch in den Koffer-Plattenwechsler-Stereoanlagen party 1008 AV 26 oder P 1011 V 26 angeboten.

  • Net weight (2.2 lb = 1 kg)
  • 5.4 kg / 11 lb 14.3 oz (11.894 lb)
  • Price in first year of sale
  • 260.00 DM
  • Mentioned in

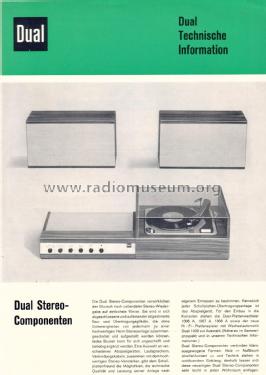

  • -- Original prospect or advert (Dual Katalog 1965)
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
