CV 440

Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Data
Forum
Pictures
Collections

  • Year
  • 1985–1987
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 227759

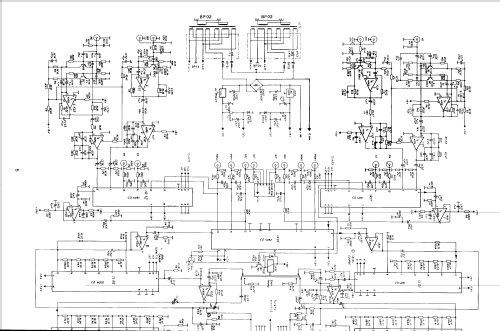

Click on the schematic thumbnail to request the schematic as a free document.

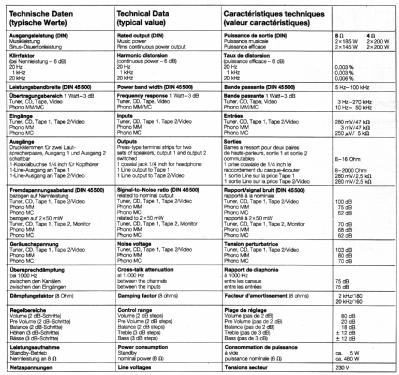

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 400 W (400 W max.)
  • from Radiomuseum.org

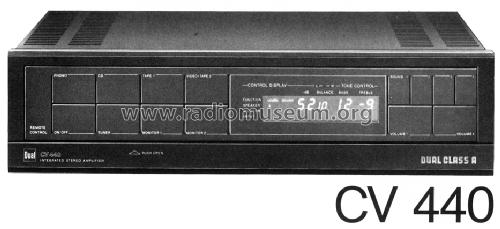

  • Model: CV 440 - Dual, Gebr. Steidinger; St.
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 440 x 117 x 335 mm / 17.3 x 4.6 x 13.2 inch
  • Notes

  • HiFi-Verstärker Dual CV 440

    • 2 x 200 Watt Sinusleistung bzw 2 x 200 Watt Musikleistung nach DIN, an 4 Ω
    • 2 x 150 Watt Sinusleistung bzw 2 x 185 Watt Musikleistung nach DIN, an 8 Ω

    Eingebauter Infrarotempfänger für die als Sonderzubehör lieferbare Fernbedienung Dual RC 40. Phonoeingänge für Magnetsysteme und MC (Moving Coil) Tonabnehmer, Anschlußklemmen für 2 Lautsprecherpaare.

  • Net weight (2.2 lb = 1 kg)
  • 16 kg / 35 lb 3.9 oz (35.242 lb)
  • Price in first year of sale
  • 1,998.00 DM
  • Source of data
  • -- Original-techn. papers.
  • Mentioned in
  • -- Original prospect or advert (Dual Programm 1985/86, HiFi Jahrbuch 1987)
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
