Hi-Fi-Stereo-Kompaktanlage KA60

Hi-Fi-Stereo-Kompaktanlage KA60; Dual, Gebr. (ID = 286551) Radio

Hi-Fi-Stereo-Kompaktanlage KA60; Dual, Gebr. (ID = 286552) Radio

Hi-Fi-Stereo-Kompaktanlage KA60; Dual, Gebr. (ID = 286553) Radio

Hi-Fi-Stereo-Kompaktanlage KA60; Dual, Gebr. (ID = 286554) Radio
Hi-Fi-Stereo-Kompaktanlage KA60; Dual, Gebr. (ID = 2314244) Radio Hi-Fi-Stereo-Kompaktanlage KA60; Dual, Gebr. (ID = 2314243) Radio
Hi-Fi-Stereo-Kompaktanlage KA60; Dual, Gebr. (ID = 2314245) Radio Hi-Fi-Stereo-Kompaktanlage KA60; Dual, Gebr. (ID = 2314247) Radio
Hi-Fi-Stereo-Kompaktanlage KA60; Dual, Gebr. (ID = 2314248) Radio Hi-Fi-Stereo-Kompaktanlage KA60; Dual, Gebr. (ID = 427270) Radio
Hi-Fi-Stereo-Kompaktanlage KA60; Dual, Gebr. (ID = 427272) Radio Hi-Fi-Stereo-Kompaktanlage KA60; Dual, Gebr. (ID = 427273) Radio
Hi-Fi-Stereo-Kompaktanlage KA60; Dual, Gebr. (ID = 841837) Radio Hi-Fi-Stereo-Kompaktanlage KA60; Dual, Gebr. (ID = 2314557) Radio
Use red slider bar for more.
Hi-Fi-Stereo-Kompaktanlage KA60; Dual, Gebr. (ID = 2314244) Radio
Dual, Gebr.: Hi-Fi-Stereo-Kompaktanlage KA60 [Radio] ID = 2314244 1381x818
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hi-Fi-Stereo-Kompaktanlage KA60, Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Country:  Germany
Manufacturer / Brand:  Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
Year: 1973/1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 50:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     16 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-130; 220-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 40 W (60 W max.)
from Radiomuseum.org Model: Hi-Fi-Stereo-Kompaktanlage KA60 - Dual, Gebr. Steidinger; St.
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 420 x 210 x 385 mm / 16.5 x 8.3 x 15.2 inch
Notes

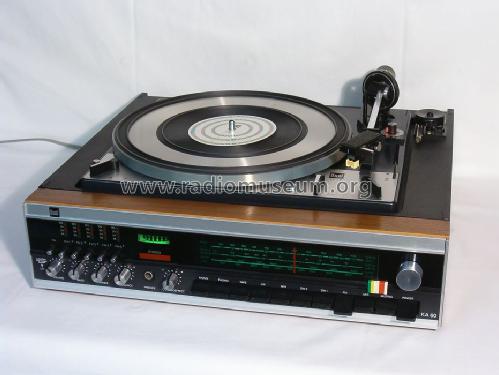

Dual HiFi Kompaktanlage KA 60

Vollstereo, NF-Verstärker mit zwei Endstufen je 20 Watt (Sinus) bzw 30 Watt (Musiklleistung), Rundfunkempfänger mit 5 Empfangsbereichen, FM-Empfindlichkeit < 1 µV für 26 dB Rauschabstand (Mono), 5 Stationstasten (FM), regelbare Quadroeffektwiedergabe bei Anschluß von 4 Lautsprecherboxen

Phono-Chassis Dual_1218  mit Magnetsystem Shure M91MG-D.

Abdeckhaube (Schiebe-Klapphaube) CH 21 im Lieferumfang

Gehäuse: Nußbaum, siehe auch Dual KA 60 W in Schleiflack, weiß.

Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 1'438.00 DM
External source of data Erb
Source of data Katalog RFP 1973 / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert (Dual Programm 1973/74)
Literature/Schematics (1) -- Original-techn. papers.
