HiFi 3-Wege-Box CL 1072

Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Data
Forum
Pictures
Collections

  • Year
  • 1983
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 284732

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed

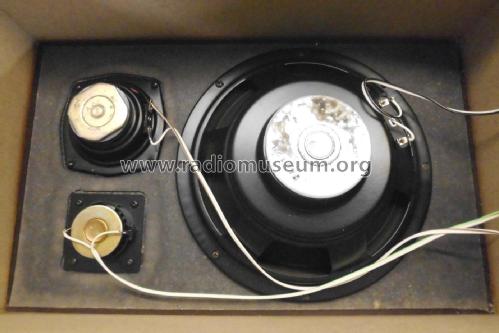

  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 100 W (120 W max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: HiFi 3-Wege-Box CL 1072 - Dual, Gebr. Steidinger; St.
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 315 x 500 x 250 mm / 12.4 x 19.7 x 9.8 inch
  • Notes

  • Hifi-Lautsprecherbox 3-Wege

    Nenn-/Musikbelastbarkeit 100/120 Watt, Impedanz 8 Ω

    Tieftöner ø 245 mm, Mitteltöner ø 100 mm, Kalottenhochtöner ø 20 mm.
    Übertragungsbereich 25-25000 Hz,
    Farbausführung: Nußbaum oder metallic - braun

  • Net weight (2.2 lb = 1 kg)
  • 8.7 kg / 19 lb 2.6 oz (19.163 lb)
  • Mentioned in
  • -- Original prospect or advert (Dual Programm 2/83 (1983))
  • Author
  • Model page created by Michael Lienhop. See "Data change" for further contributors.
