- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1972/1973
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 78334

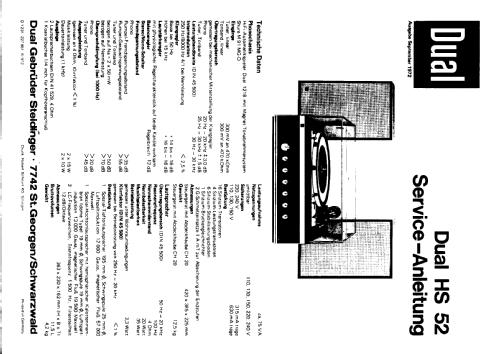

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 20
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110-130; 150; 220-240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 20 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: HS52 - Dual, Gebr. Steidinger; St.
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 420 x 225 x 385 mm / 16.5 x 8.9 x 15.2 inch
- Notes
- Phono-Chassis = 1218;
Stereo-NF-Verstärker mit 2 Endstufen je 10 W (Sinus), 2 Lautsprecherboxen (230×363×162 mm, 4 kg) im Lieferumfang.
Gehäuse: Nußbaum, natur; siehe auch HS52W in Schleiflack, weiß.
- Net weight (2.2 lb = 1 kg)
- 12.5 kg / 27 lb 8.5 oz (27.533 lb)
- Source of data
- Handbuch VDRG 1972/1973 / Radiokatalog Band 2, Ernst Erb
- Author
- Model page created by Peter Böhm. See "Data change" for further contributors.
