HS27W

HS27W; Dual, Gebr. (ID = 285757) R-Player HS27W; Dual, Gebr. (ID = 684382) R-Player
HS27W; Dual, Gebr. (ID = 684383) R-Player
Use red slider bar for more.

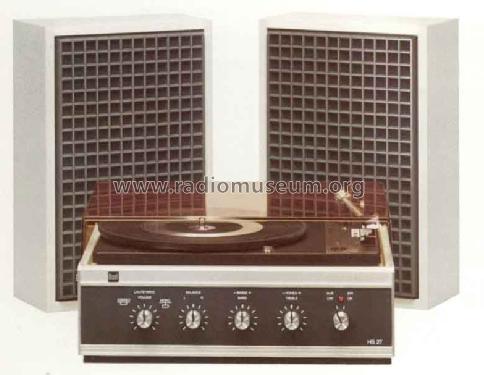

HS27W; Dual, Gebr. (ID = 285757) R-Player
Dual, Gebr.: HS27W [R-Player] ID = 285757 784x607
Select picture or schematic to display from thumbnails on the right and click for download.
For model HS27W, Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Country:  Germany
Manufacturer / Brand:  Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
Year: 1973–1976 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 10:
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110-130; 220-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: HS27W - Dual, Gebr. Steidinger; St.
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 304 x 143 x 252 mm / 12 x 5.6 x 9.9 inch
Notes Phono-Chassis = 430;
Stereo-NF-Verstärker mit 2 Endstufen je 6 W, 2 Lautsprecherboxen (195×300×130 mm, 1,7 kg) im Lieferumfang.
Gehäuse: Schleiflack, weiß; siehe auch HS27 in Nußbaum, natur.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 434.00 DM
Source of data Handbuch VDRG 1973/1974
Mentioned in Handbuch VDRG 1974/1975 (und 1975/76)

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
