HS33W

HS33W; Dual, Gebr. (ID = 578326) R-Player
HS33W; Dual, Gebr. (ID = 1456236) R-Player
Use red slider bar for more.
HS33W; Dual, Gebr. (ID = 1456236) R-Player
Dual, Gebr.: HS33W [R-Player] ID = 1456236 900x544
Select picture or schematic to display from thumbnails on the right and click for download.
For model HS33W, Dual, Gebr. Steidinger; St. Georgen/Schwarzwald:
HS33 [Dual 1210] mit Boxen CL10

Country:  Germany
Manufacturer / Brand:  Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
Year: 1969/1970 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 10: BC173 BC173 BC172 BC172 BC108 BC108 AC180 AC181 AC180 AC181
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110; 150; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: HS33W - Dual, Gebr. Steidinger; St.
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 356 x 195 x 320 mm / 14 x 7.7 x 12.6 inch
Notes Phono-Chassis = 1210. Stereo-NF-Verstärker mit 2 Endstufen je 6 W, 2 Lautsprecherboxen CL10 (300×195×130 mm, 1,5 kg) im Lieferumfang.
Gehäuse in Schleiflack, weiß; siehe auch H33 in Nussbaum, natur.
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Price in first year of sale 422.00 DM
Source of data Handbuch VDRG 1969/1970

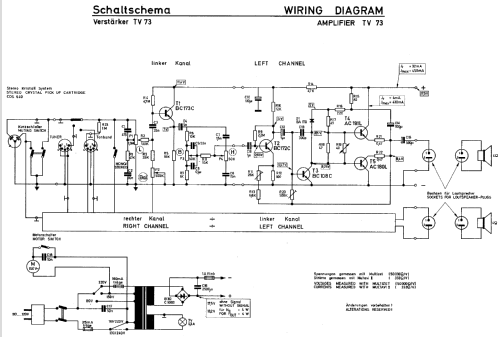

Literature/Schematics (1) -- Schematic

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
