• Year
  • 1969/1970
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 111276

 Technical Specifications

  • Number of Transistors
  • 14
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org

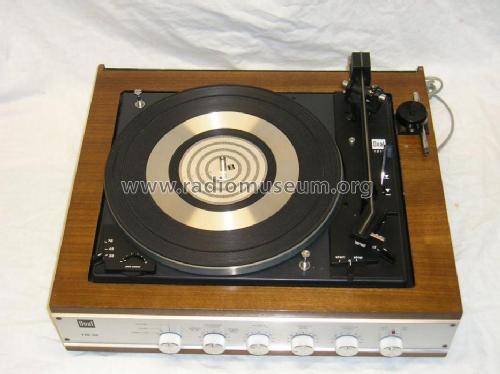

  • Model: HS34 - Dual, Gebr. Steidinger; St.
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 420 x 204 x 377 mm / 16.5 x 8 x 14.8 inch
  • Notes

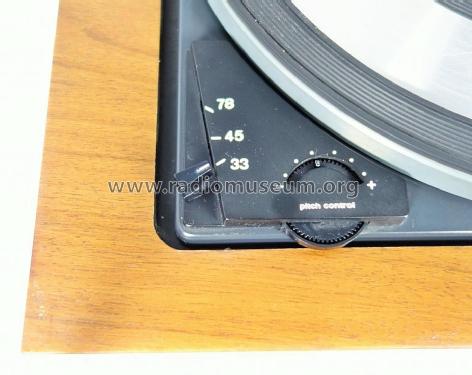

  • Verstärker Modul = TV64. Phono-Chassis = Dual 1212, Geschwindikeit: 33 1/3; 45; 78 UpM; Magnetsystem M71; NF-Ausgangsleistung 2× 6 Watt; 2 Lautsprecherboxen im Lieferumfang.
  • Net weight (2.2 lb = 1 kg)
  • 18.2 kg / 40 lb 1.4 oz (40.088 lb)
  • Price in first year of sale
  • 784.00 DM
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Winkler. See "Data change" for further contributors.
