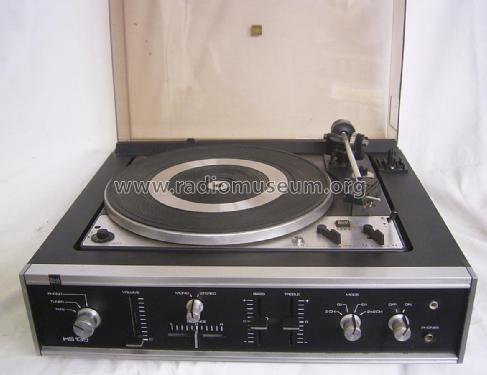

HS 135; Dual, Gebr. (ID = 1712263) R-Player
Dual, Gebr.: HS 135 [R-Player] ID = 1712263 933x854
Select picture or schematic to display from thumbnails on the right and click for download.
For model HS 135, Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Country:  Germany
Manufacturer / Brand:  Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
Year: 1976–1978 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 14:
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110-130; 150; 220-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: HS 135 - Dual, Gebr. Steidinger; St.
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 420 x 180 x 385 mm / 16.5 x 7.1 x 15.2 inch
Notes Stereo-Heimanlage. NF-Verstärker mit 2 Endstufen je 15 W, Lautsprecher-Matrix für Quadroeffekt-Wiedergabe, 4 LS-Ausgänge; zwei LS-Boxen im Lieferumfang;
Phono-Chassis = Dual 1224 mit Keramik-System CDS660.
Ausführungen: HS135 in nussbaumfarbener Konsole mit LS-Boxen CL200; HS135W in weisser Konsole mit LS-Boxen CL200W.
Net weight (2.2 lb = 1 kg) 10.1 kg / 22 lb 3.9 oz (22.247 lb)
Collectors' prices
Source of data Handbuch VDRG 1977/1978
Mentioned in Dual Products 1976/77 Original leaflet

Model page created by J. Virgilio Santos. See "Data change" for further contributors.
