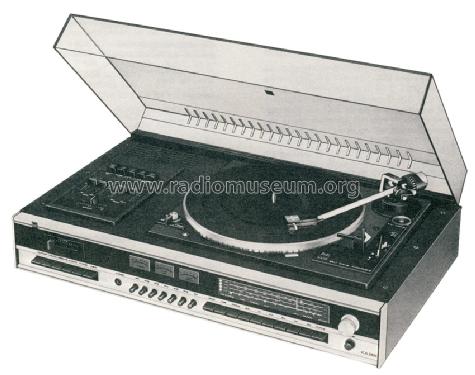

KA260

• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1976–1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 124275

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 11 AM circuit(s)     15 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• from Radiomuseum.org
• Model: KA260 - Dual, Gebr. Steidinger; St.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 650 x 180 x 442 mm / 25.6 x 7.1 x 17.4 inch

• Notes
• HiFi-Stereo-Kompaktanlage. NF-Ausgangsleistung 2× 36 W (Sinus);
  Phono-Chassis = Dual 510 mit Magnetsystem Shure M95G-LM.
  Ausführungen:
  KA260: anthrazitfarbene Konsole, ohne Lautsprecherboxen;
  KA260-2L: anthrazitfarbene Konsole mit 2 LS-Boxen Dual CL270;
  KA260-2LW: anthrazitfarbene Konsole mit 2 LS-Boxen Dual CL270W;
  KA260-2LS: anthrazitfarbene Konsole mit 2 LS-Boxen Dual CL270S.

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Source of data
• Handbuch VDRG 1977/1978

• Mentioned in
• Handbuch VDRG 1976/1977

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
