- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1972–1974
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 94012
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110-130; 150; 220-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 6 W (max.)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: P54 - Dual, Gebr. Steidinger; St.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 373 x 160 x 415 mm / 14.7 x 6.3 x 16.3 inch
- Notes
-

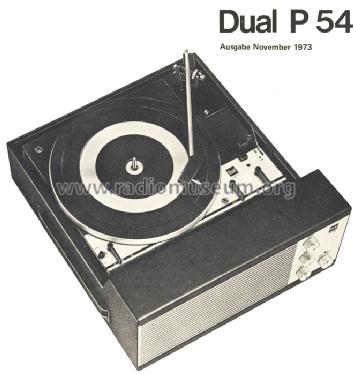

P 54 Plattenwechsler-Verstärkerkoffer
NF-Verstärker (TV71A) mit Endstufe 6 Watt (Musikleistung), Übertragungsbereich
20 - 20.000Hz ± 3 dB.Phono-Chassis = Dual_1211 Automatikspieler, (33/45/78UpM) mit Keramiksystem
CDS 650 mit Nadel DN6 (Auflagekraft 40mN) 20 - 16.000Hz
Eingebauter Front-Lautsprecher: Spezial - Breitbandlautsprecher, 6 Watt.
Holzgehäuse mit Kunstlederbezug
Gehäusefarbe: anthrazit
- Net weight (2.2 lb = 1 kg)
- 9.3 kg / 20 lb 7.8 oz (20.485 lb)
- Price in first year of sale
- 374.00 DM
- Source of data
- Handbuch VDRG 1972/1973
- Mentioned in
- -- Original prospect or advert (Dual Programm 1972/73)
- Author
- Model page created by Wolfgang Winkler. See "Data change" for further contributors.
