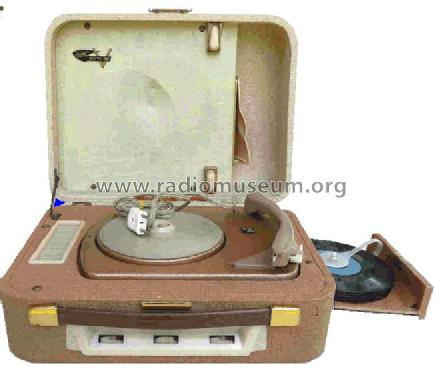

Party 295V

• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1957–1959

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 21483

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• ECL82

• Number of Transistors

• Semiconductors
• E250C85

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Power out
• 3.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Party 295V - Dual, Gebr. Steidinger; St.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 175 x 310 mm / 15.7 x 6.9 x 12.2 inch

• Notes
• 4 Geschwindigkeiten; Kristall-System, 20-20000 Hz.

• Net weight (2.2 lb = 1 kg)
• 7.6 kg / 16 lb 11.8 oz (16.74 lb)

• Price in first year of sale
• 238.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 2, Ernst Erb
